Product information "Sizing & Edgebanding / Processing Line"

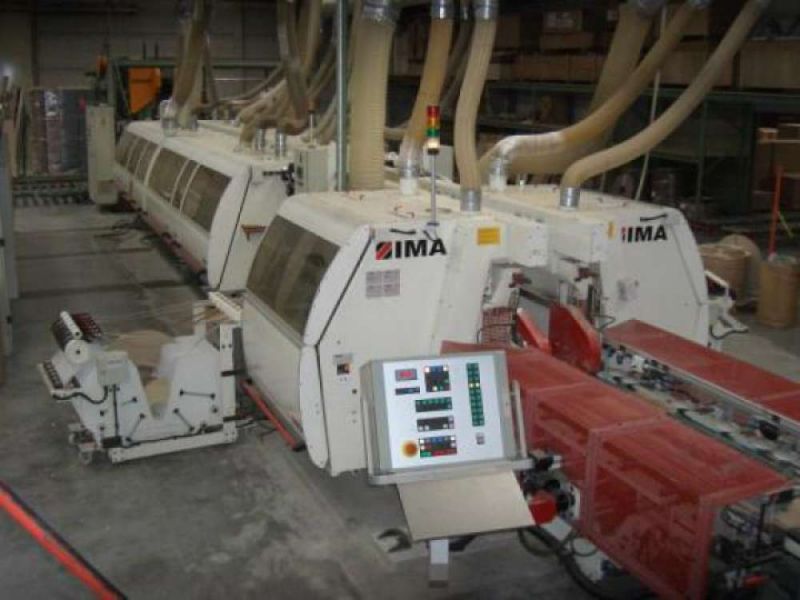

Machine I: IMA COMBIMA/K/II/R75/1220/F/R3

working width 1300 mm

with dogs

feed speed 8 – 40 m/min

electron. width and height adjustment

max. strip thickness coil material 3,0 mm

separating agent application

double hogging unit 6,6 kW, electron. horiz. positioning

2 x milling/profile milling/groove unit 4,4 kW, swivelling, electron. horiz. positioning

avail. space approx. 1200 mm for scoring and profile milling unit

gluing unit for operation straight edge or softforming

6-fold magazine

avail. space approx. 1300 mm for soft profile pressure zone

end trimming unit, 2 x each 200 W

milling unit, 2 x each 1000 W

multiple profile milling unit, 2 x each 1000 W, 30° swivelling

multiple profile scraping unit with positioning control

flat scraper with electron. positioning

buffing unit

extraction device 390 mm long

IMATRONIC-150

Autom. production control

Autom. process control with set-up gap creation

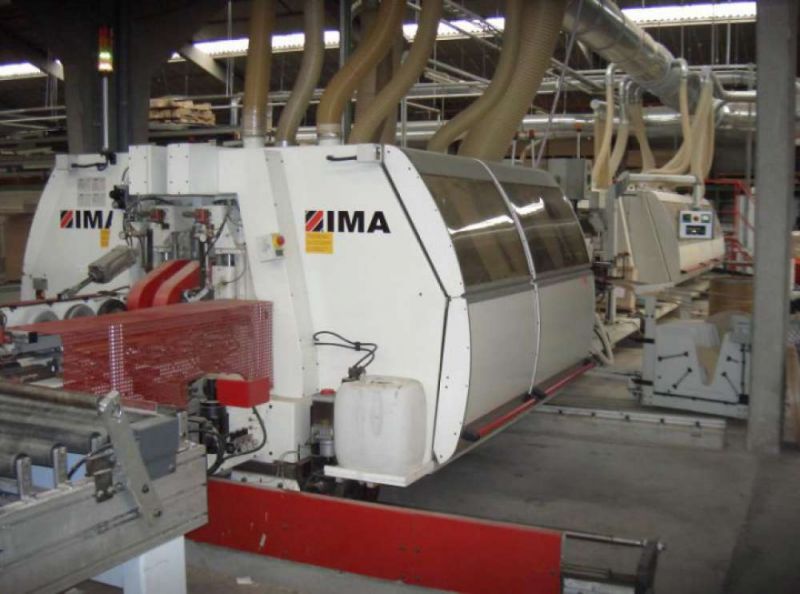

Machine II: IMA Combima/K/II/R75/1075/R3

working width  2800 mm

with dogs

feed speed 6 – 30 m/min

electron. width and height adjustment

max. strip thickness 3,0 mm

chain track elongation for 1200 mm long workpieces

separating agent application

milling unit 4,4 kW, controlled, electron. horiz. positioning

double hogging unit 2 x each 6,6 kW, electron. horiz. positioning

edge gluing max. 3 mm coil material

hotmelt application

autom. Quickmelt-hotmelt supply

6-fold magazine

end trimming unit, 2 x each 200 W

milling unit, 2 x each 1000 W

multi-operating unit 660 W, with servo drive and auto. programme change

copy milling unit 180 W

multi profile scraping unit

flat scraper with electron. horiz. positioning

copy-corner buffing compact unit, 4 x each 0,25 kW

buffing unit, 2 x each 0,25 kW

extraction device 390 mm long

electron. machine control  for the control and check of unit processes and machine functions

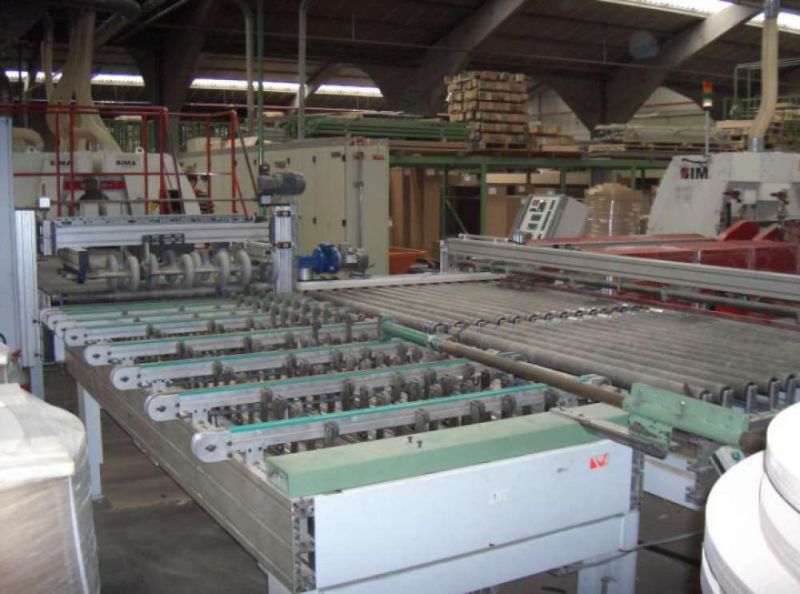

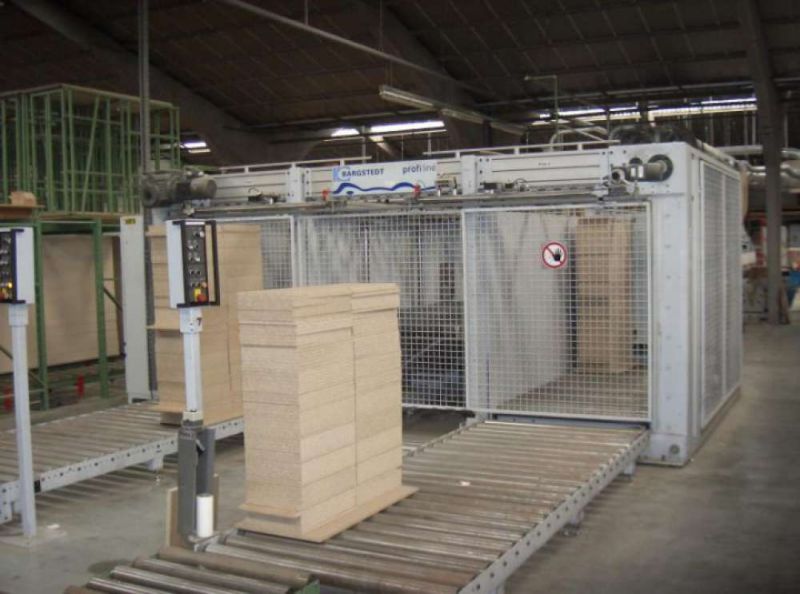

complete incl. Feeding Unit, Angular Transfer, Stacking Unit
