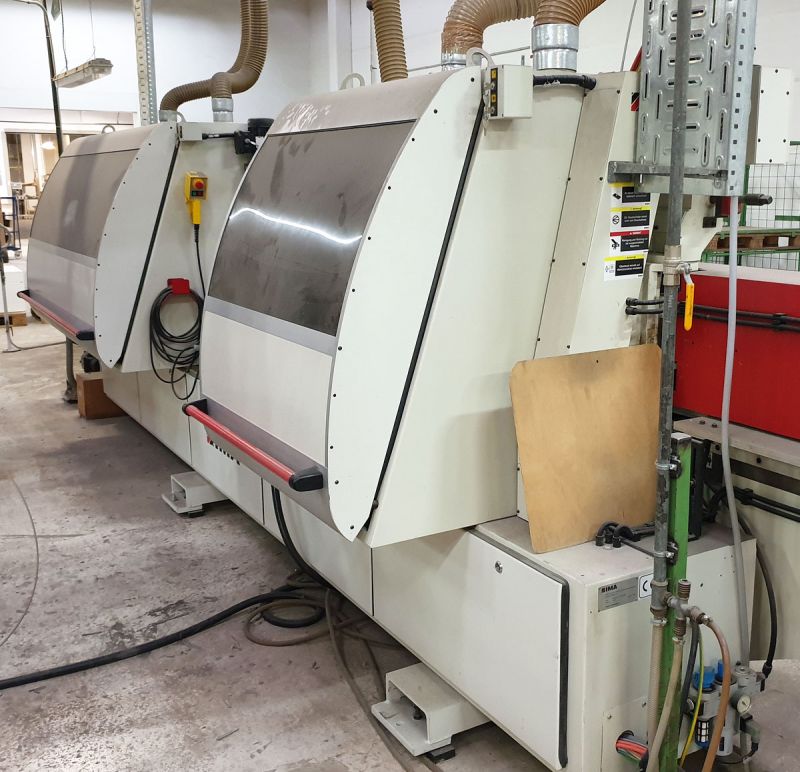

Product information "IMA single sided edge banding and processing machine - for applying a sealing lip profile"

IMA NOVIMAT / I / G80 / 500

For applying a sealing lip profile,

Roller material in longitudinal direction on flat panel work pieces,
a) Sealing lip profile coil material

Left side machine

Infeed device 63.274
to automatically convey work pieces to the fence

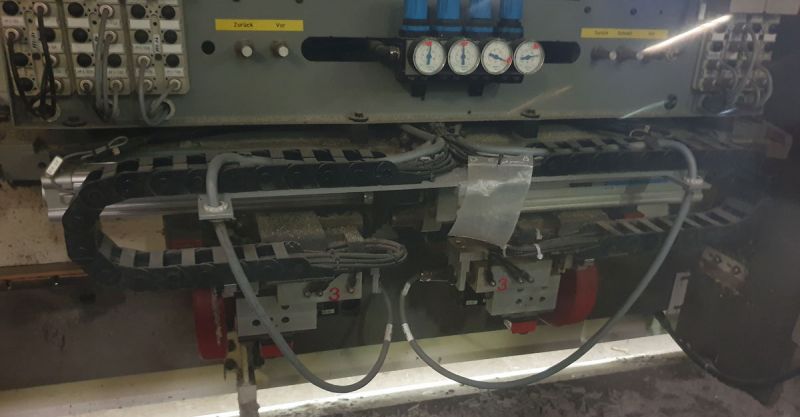

Pre-milling unit 08.376
for pre-milling edges / calibrating formatted work pieces or for milling lateral grooves, rebates or profiles,
jump-type, not swivelling, without tracing,
with 2 motors each 3.0 kW, 12000 rpm, 200 Hz,
Motor 1 clockwise and motor 2 in counter clockwise rotation,

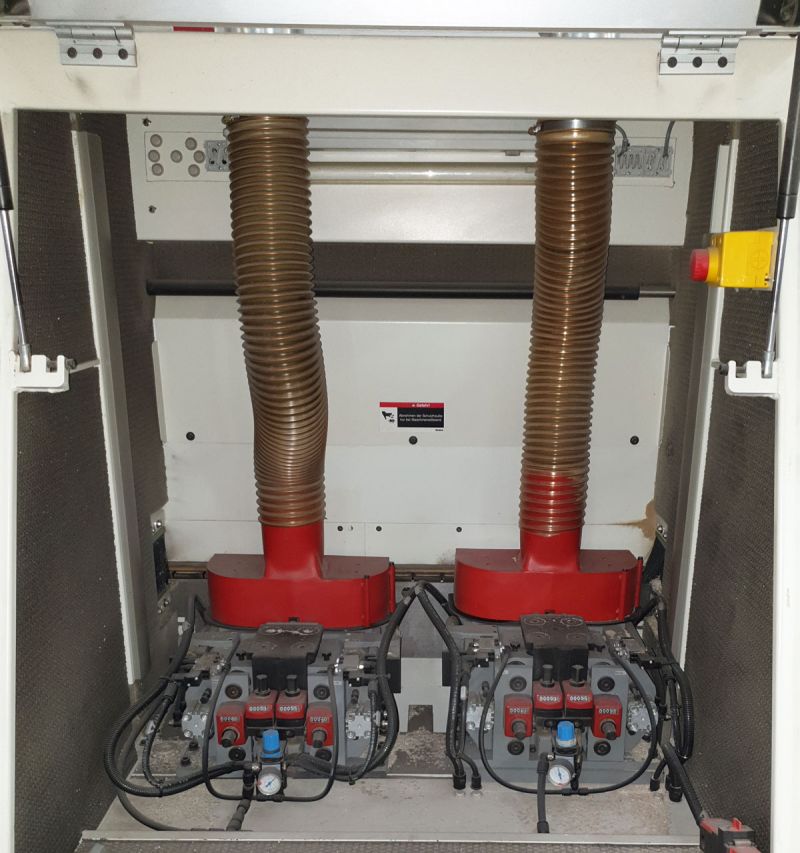

Milling unit 08.376
for edge milling / calibrating formatted work pieces or for milling lateral grooves, rebates or profiles,
jump-type, not swivelling, without tracing,
with 2 motors each 1850 W, 200 Hz, 12000 rpm,

White glue spray nozzle
For applying a white glue bead into the groove, with a double membrane pump

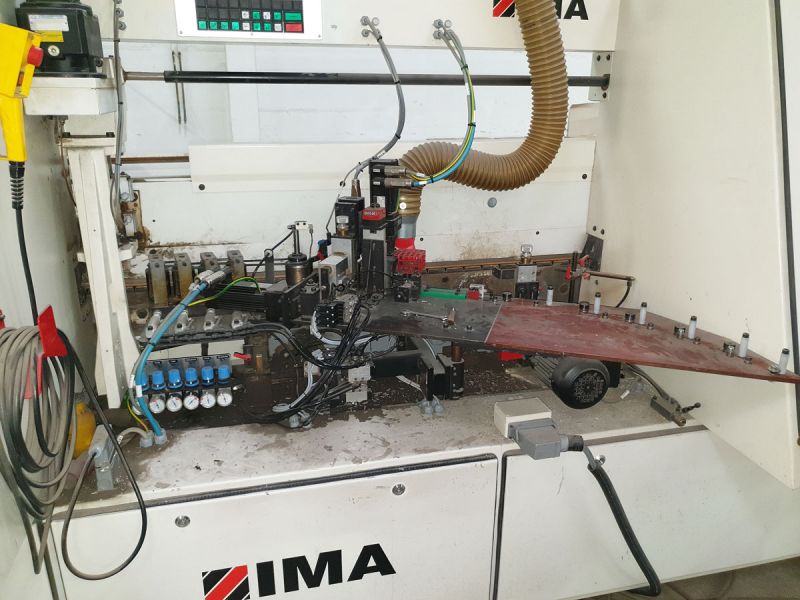

Closed gluing part
for feeding in a sealing lip profile
a) strip control via light guides for the feed magazine
(if a strip cannot be fed due to a fault,
the feed of the machine is switched off)
4 pressure rollers with a diameter of 62, fixed to press the sealing lip profile
1-fold sealing tape magazine with:
- Trimming motor for notching the connecting web of the sealing lip
- Servo drive for cutting knife
- Servo drive for edge feed

Vertical driven 2-fold roller holder

Trimming unit 08.42
mounted on the top pressure
for capping the front and rear projection of the sealing lip profile,
with fixed tracing for front and rear edge, lateral tracing,
with 1 motor 200 W, 400 V, 200 Hz, 12000 rpm
Front / rear edge tacing shoe can be controlled
Motor can be positioned horizontally on 3 fixed points (flush / offset 9 mm / offset 12 mm)
with controllable immersion depth limitation

Upper hot air blower 7.5 kW,
to reactivate the glue in the upper area on the edge material before pressing around the top profile of the panel edge

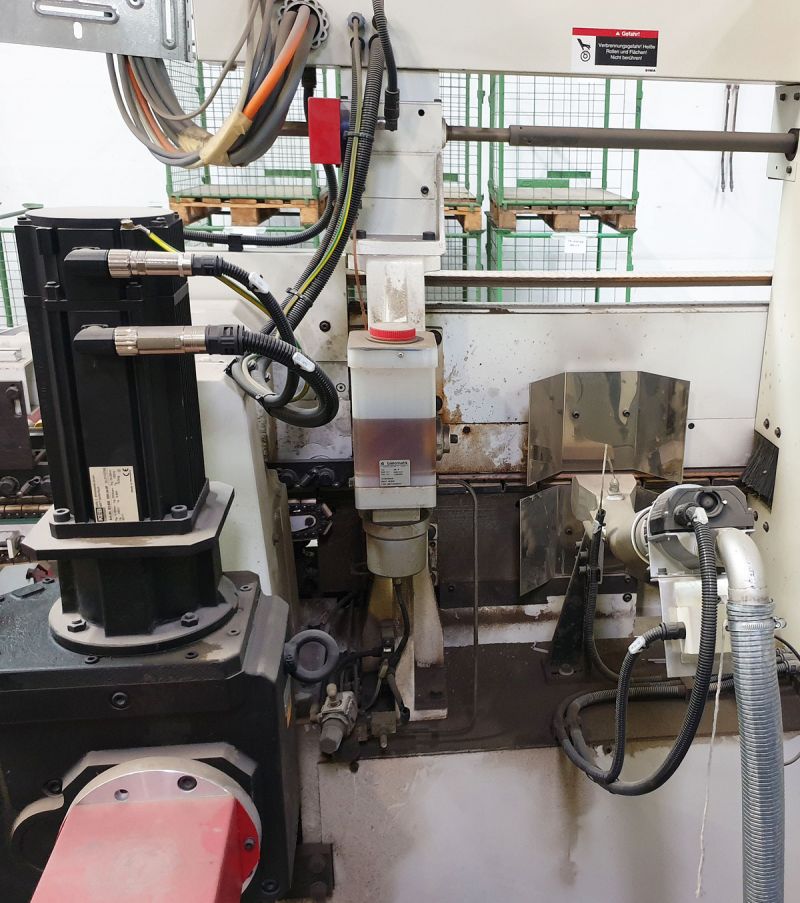

Rotatable punching knife for buffer profile with servo technology

IMATRONIC-100, computer system for operating and programming an electronically controlled edge processing machine or system, built into the machine infeed desk of the first edge processing machine.

Automatic production control with specification of the work list via keyboard
Management for production lists
List editor for creating, copying, saving and deleting production lists
Administration for max. 200 production lists with
Table of Contents

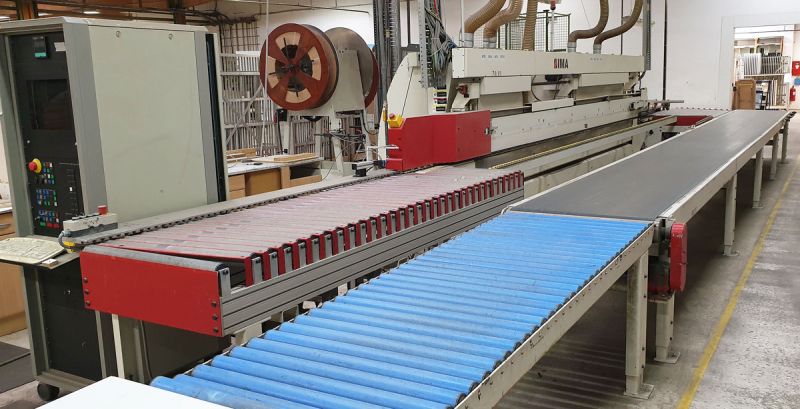

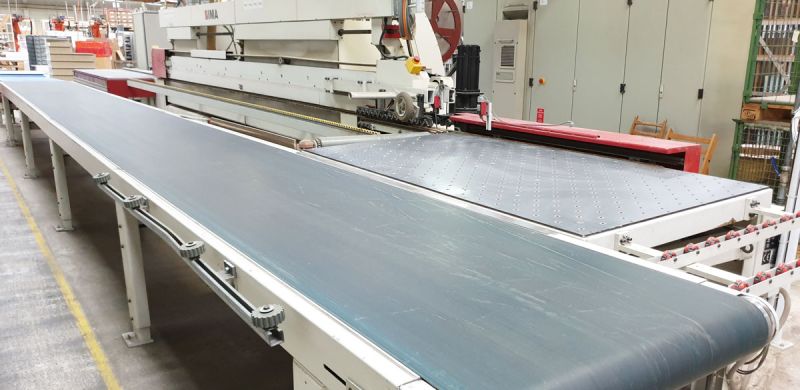

LIGMATECH return unit
