Product information "Veneer splicer"

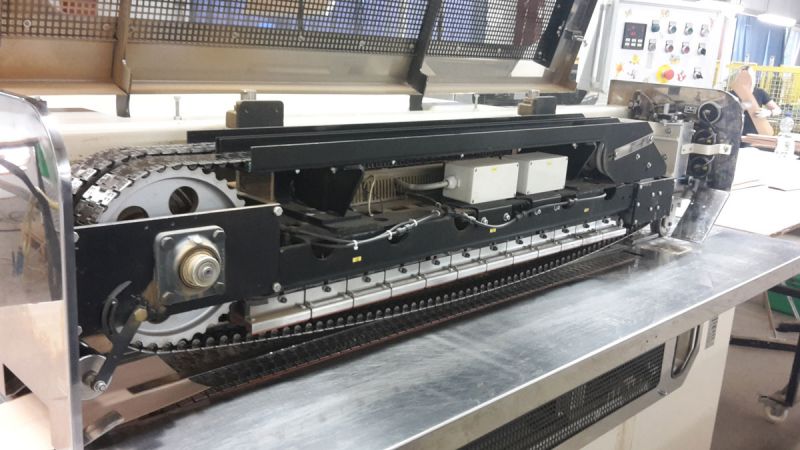

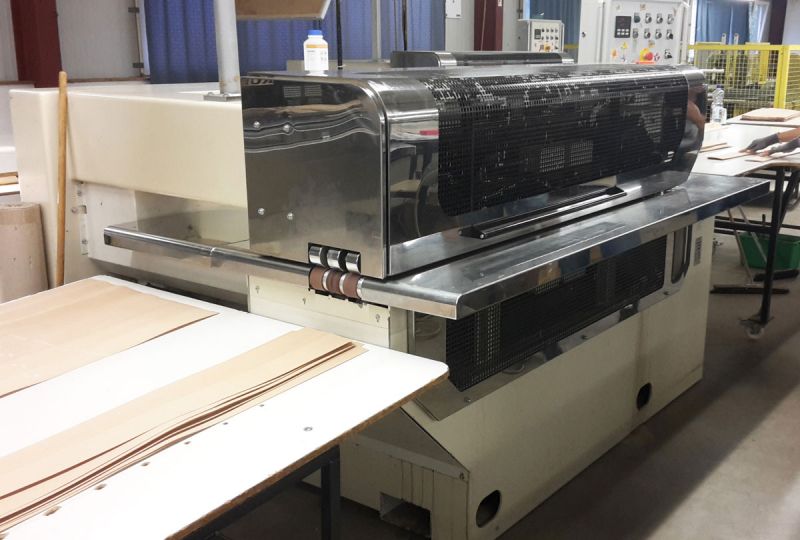

Veneer splicer  Kuper Type FLI

Technical Data

Throat depth                            1000 mm
Veneer thickness                       approx. 0.3 to 2.5* mm
Veneer length                            from approx. 350 mm
Veneer strip width                      from approx. 45 mm
Feed speed                             approx. 20 - 50 m/min
Length of heating zone             1200 mm
Heating temperature                  approx. 220 C
Operating voltage                     400 V  50 cycles  3 Ph.
Total connected load                 approx. 9.3 KVA
Average power consumption      approx. 5 KW
Air consumption                       approx. 5 NL / 6 bar
Floor space                              2370 x 1960 x 1470 mm
